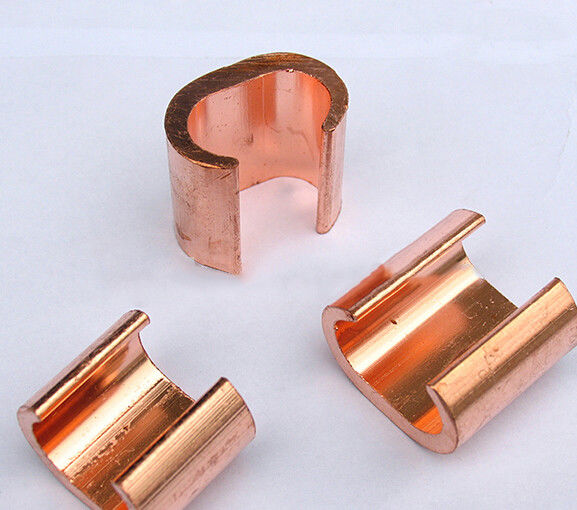

Copper C cable clamp, Copper material, Good electric conduction
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Brass Or Alloy Of Copper And Aluminum | Function: | Fixing And Connection For Ground Rods, Cable And Copper Tape |
|---|---|---|---|
| Service life: | More Than 50 Years. | Characteristics: | Convenient Connection; Good Electric Conduction; Strong Corrosion Resistance; Easy Installation; Cost-effective |
| Service: | Offer OEM Or ODM Mode Service. |
Copper C cable clamp is made of high quality copper, and it is used in cable and cable connection. widely used in earthing project with it's Strong corrosion resistance, Good conductivity, and long use life.
| Materials | Copper or tinned copper or aluminum |
| Function | Connecting cable to cable |
| Advantage | Strong corrosion resistance, Good conductivity, and 50 years use life. |
| Operating | Very simple and convenient |
Product Specification:
|
Model No. |
Cable Diameter(mm2) | Size(mm) | |||||
| B | A | H | L | C | T | ||
| KF-CCT-10 | 7.5-14 | 9.5 | 6.3 | 6.2 | 12 | 4 | 1.6 |
| KF-CCT-16 | 14.5-16 | 11.8 | 7.8 | 7.8 | 13 | 5 | 2 |
| KF-CCT-20 | 16.5-20 | 12.8 | 8.6 | 9.7 | 13 | 5.4 | 2.9 |
| KF-CCT-26 | 21-26 | 14.7 | 10.2 | 10 | 16 | 6.5 | 3.2 |
| KF-CCT-44 | 27-44 | 19 | 13.4 | 14.4 | 20 | 8.5 | 4 |
| KF-CCT-60 | 45-60 | 21 | 15.4 | 15.4 | 22 | 9.7 | 4 |
| KF-CCT-76 | 61-76 | 24.4 | 17.3 | 17.6 | 22 | 10.8 | 5 |
| KF-CCT-98 | 77-98 | 27.8 | 20.8 | 18.8 | 25 | 12.8 | 5 |
| KF-CCT-122 | 99-122 | 29.8 | 22.1 | 21.2 | 26 | 13.5 | 5.5 |
| KF-CCT-154 | 123-154 | 34 | 25.7 | 24.4 | 28 | 17 | 6 |
| KF-CCT-190 | 155-190 | 37 | 28.5 | 25.4 | 35 | 17.4 | 6 |
| KF-CCT-240 | 191-240 | 40 | 30.2 | 28.5 | 40 | 19 | 7 |
| KF-CCT-288 | 241-288 | 44.5 | 34.7 | 34.1 | 40 | 22.3 | 7 |
| KF-CCT-365 | 289-365 | 47.5 | 37.7 | 34 | 50 | 24.8 | 7 |
| KF-CCT-450 | 366-450 | 57 | 42.5 | 41 | 60 | 28 | 10 |
| KF-CCT-560 | 451-700 | 68 | 54 | 49.5 | 70 | 44 | 12 |
| KF-CCT-700 | 561-700 | 68 | 54 | 49.5 | 70 | 44 | 12 |
Our KFWELD series of product already widely used in large scaled key national construction project, petrochemical field, electric power field, military field, railway field, nuclear power field, telecommunications field, and other industries. Our products make these filed into maintenance-free condition, easy transportation construction, reduce installation cost greatly, now our products not only cover through China market, but also accepted by the worldwide market.
