Material: | T2 Copper Or Tinned Copper | Type: | DT |
---|---|---|---|
Function: | Fixing And Connection For Cables | Character: | Igh Conductivity;Strong Anti Corrosion; Cost-effective |
Service Life: | More Than 50 Years |

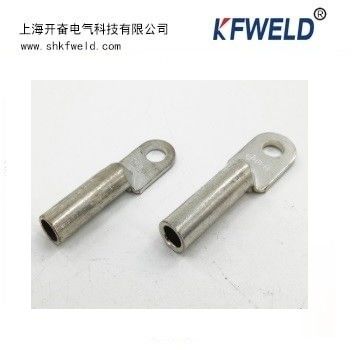

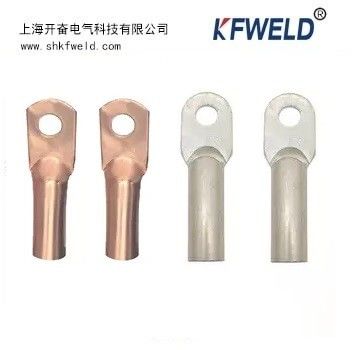

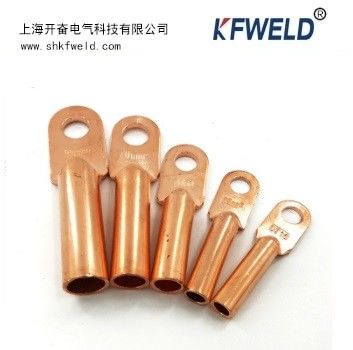

DT Copper Terminal Cable Lug is made of copper, fixing and connection for cables. The copper terminal lug is widely used in earthing project with it's Strong corrosion resistance, Good conductivity, and long use life. Tinned copper cable lug have a better performance.
Material: T2 copper/Tinned Copper.
Function: Fixing and connection for cables.
Surface: Pure copper/Tinned.
Character: High Conductivity;Strong Anti corrosion; Cost-effective.
Operating:Very Simple and Convenient.
Service Life: More Than 50 Years.
Model | Cable Size (mm2) | Dimension (mm) | |||||
Φ | D | d | L | W | T | ||
KF-DT-10 | 10 | 8.5 | 10 | 5 | 67 | 16 | 2.7 |
KF-DT-16 | 16 | 8.5 | 10 | 5.5 | 67 | 16 | 3.0 |
KF-DT-25 | 25 | 8.5 | 12 | 7.0 | 70 | 18 | 3.5 |
KF-DT-35 | 35 | 10.5 | 14 | 8.5 | 79 | 20 | 3.5 |
KF-DT-50 | 50 | 10.5 | 16 | 9.5 | 90 | 23 | 4.0 |
KF-DT-70 | 70 | 12.5 | 18 | 12 | 102 | 26 | 4.5 |
KF-DT-95 | 95 | 12.5 | 21 | 13 | 112 | 28 | 5.0 |
KF-DT-120 | 120 | 14.5 | 23 | 15 | 120 | 30 | 5.5 |
KF-DT-150 | 150 | 14.5 | 25 | 16 | 126 | 34 | 6.0 |
KF-DT-185 | 185 | 16.5 | 27 | 18 | 133 | 37 | 6.5 |
KF-DT-240 | 240 | 16.5 | 30 | 20 | 140 | 40 | 7.5 |
KF-DT-300 | 300 | 21 | 34 | 23 | 165 | 45 | 8.5 |
KF-DT-400 | 400 | 21 | 38 | 26 | 170 | 52 | 9.5 |
KF-DT-500 | 500 | 21 | 42 | 29 | 190 | 60 | 10 |
KF-DT-630 | 630 | 54 | 34 | 225 | 78 | 10.5 | |
KF-DT-800 | 800 | 60 | 38 | 270 | 100 | 11 |
