DT 2 holes Copper Terminal Cable Lug, Manufacture Copper Cable Lug Tinned Copper Lug Terminal DT Lug
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | T2 Copper Or Tinned Copper | Type: | DT |
|---|---|---|---|
| Function: | Fixing And Connection For Cables | Character: | Igh Conductivity;Strong Anti Corrosion; Cost-effective |
| Service Life: | More Than 50 Years |

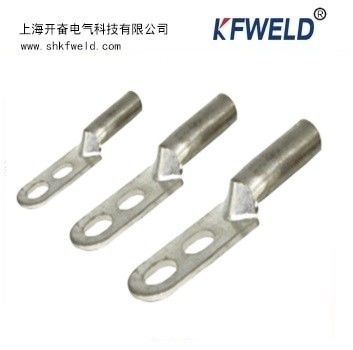

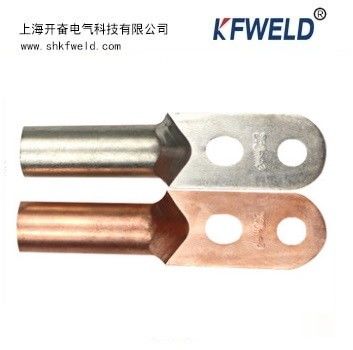

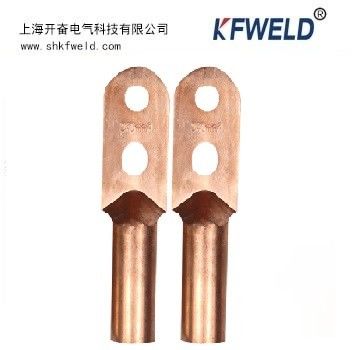

DT2 double-hole copper terminal block with 2 holes (2 round holes, or 1 round hole, 1 oval hole, or 2 oval holes), accept which can be customized.
Material: T2 copper/Tinned Copper.
Function: Fixing and connection for cables.
Surface: Pure copper/Tinned.
Character: High Conductivity;Strong Anti corrosion; Cost-effective.
Operating:Very Simple and Convenient.
Service Life: More Than 50 Years.
Standard type specification:
| Model | Cable size (mm2) | Dimension (mm) | ||||
| Φ | D | L1 | L | W | ||
| KF-DT2-16 | 16 | 4.25 | 10 | 15-25 | 90 | 18 |
| KF-DT2-25 | 25 | 4.25 | 11 | 15-25 | 93 | 18 |
| KF-DT2-35 | 35 | 5.25 | 12 | 20-30 | 104 | 22 |
| KF-DT2-50 | 50 | 5.25 | 14 | 20-30 | 110 | 22 |
| KF-DT2-70 | 70 | 5.25 | 16 | 20-30 | 118 | 28 |
| KF-DT2-95 | 95 | 5.25 | 18 | 20-30 | 126 | 28 |
| KF-DT2-120 | 120 | 6.25 | 20 | 25-35 | 139 | 30 |
| KF-DT2-150 | 150 | 6.25 | 22 | 25-35 | 144 | 34 |
| KF-DT2-185 | 185 | 6.25 | 24 | 30-40 | 157 | 40 |
| KF-DT2-240 | 240 | 6.25 | 27 | 30-40 | 163 | 40 |
| KF-DT2-300 | 300 | 6.25 | 30 | 30-40 | 176 | 45 |
| KF-DT2-400 | 400 | 6.25 | 34 | 30-40 | 188 | 50 |
| KF-DT2-500 | 500 | 8.25 | 38 | 35-45 | 213 | 55 |
| KF-DT2-630 | 630 | 8.25 | 45 | 35-45 | 230 | 55 |
