GTL Bimetallic Copper Aluminum Ferrule Tubular, Copper Aluminum Ferrule Cable Terminal

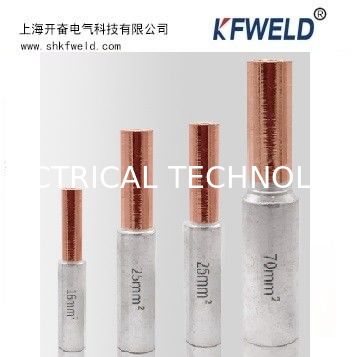

Large Image : GTL Bimetallic Copper Aluminum Ferrule Tubular, Copper Aluminum Ferrule Cable Terminal

Product Details:

Place of Origin:	China
Brand Name:	KFWELD
Certification:	CE, RoHs, UL
Model Number:	GTL

Payment & Shipping Terms:

Minimum Order Quantity:	50 pcs
Price:	USD
Packaging Details:	bag+carton+wooden case
Delivery Time:	3 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 pcs/day

Contact Now

Detailed Product Description

Material:	T2 Copper +L3 Aluminum.	Type:	GTL Pipe
Function:	Fixing And Connection For Cables	Character:	Igh Conductivity;Strong Anti Corrosion; Cost-effective
Service Life:	More Than 50 Years

GTL Bimetallic Copper Aluminum Connect Ferrule Tubular is suitable for the connection between various round and semi-circular fan-shaped wires and power cables in power distribution devices.

Material: T2 Copper +L3 Aluminum.

Features: anti-corrosion, long stress, good electrical conductivity and safety.

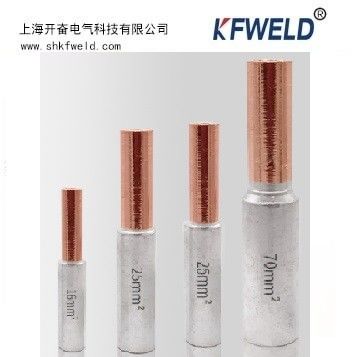

GTL Bimetallic Copper Aluminum Ferrule Tubular, Copper Aluminum Ferrule Cable Terminal

Model	Cable Size(mm2)	Dimension(mm)
Model	Cable Size(mm2)	d1	D1	d	D	L1	L2	L
KF-GTL-10	Al10,Cu6	4.5	8	5.5	9.3	27	23	70
KF-GTL-16	AL16, Cu10	5	9	6	10	35	28	75
KF-GTL-25	AL25, Cu16	6.5	10	7	12	39	31	82
KF-GTL-35	AL35, Cu25	7	11	8.5	14	44	34	90
KF-GTL-50	AL50, Cu35	8.5	13	9.7	16	45	38	95
KF-GTL-70	AL70, Cu50	9.7	15	11.5	18	52	40	105
KF-GTL-95	AL95, Cu70	11.5	17	13.5	21	52	43	110
KF-GTL-120	AL120, Cu95	13.5	19	15	23	52	43	112
KF-GTL-150	AL150, Cu120	15	21	15.5	25	54	44	118
KF-GTL-185	AL185, Cu150	18.5	23	16.5	27	58	47	125
KF-GTL-240	AL240, Cu185	18.5	26	21	30	60	48	130
KF-GTL-300	AL300, Cu240	21	29	23	34	65	55	145
KF-GTL-400	AL400, Cu300	23	30	26.5	38	70	60	155
KF-GTL-500	AL500, Cu400	27	34	29.5	42	75	65	165
KF-GTL-630	AL630, Cu500	29	38	34	54	80	70	180
