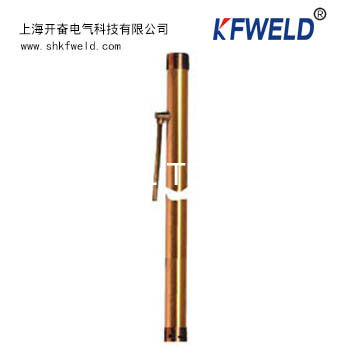

Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list

I'm Online Chat Now

Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list

China Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list supplier
Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list supplier Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list supplier Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list supplier Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list supplier

Large Image :  Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list

Product Details:

Place of Origin: China
Brand Name: KFWELD
Certification: UL, CE, ISO, SGS

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: USD
Packaging Details: Nylon strip, Weave strip, Iron pallet or wooden case, 3 tons/pallets
Delivery Time: 5 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000 pcs per month
Detailed Product Description
Certification: UL 467, ISO9001, CE, SGS Packaging: Nylon Strip, Weave Strip, Iron Pallet Or Wooden Case, 3 Tons/pallets
Copper Thicnness: >0.254mm

Chemical ground rod is made of copper(or steel) and filled high carbon ionic compound crystal inside.
1. Product performance and characteristics:
High carbon ionic compound crystal is filled inside the tube of KFWELD brand chemical ground rod with copper and steel on surface so as to make sure the best conducting performance and long life span .The filler inside the conductor includes special electro-ionic compound so it can absorbs water in the air and release the active electro-ionic into soils through deliquescence functions and combines with water in soil and air. So that it can promote slow release and resistance reduction outside the conductor and make sure resistance values are stable for long time. Compound inside the conductor will become colloid and transparent status step by step by chemical combination as time goes by. We can utilize the electrical conductivity from colloid compound to enable the entire system being in the ion exchange for a long time so that it has formed an ideal electrolytic ion earthing pole.

2. Chemical rod has below characteristics compared with traditional earthing construction process.
1) 2-1/8 (54mm) OD Type K copper pipe contains natural electrolytic salts that permeate into the surrounding soil, lowering resistivity
2) Available up to 20 feet (610cm) in continuous length and longer rods can be field assembled using 10 foot (305cm) sections

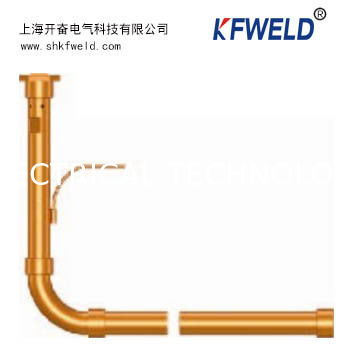

3) L-Shaped rods are installed horizontally in a trench where it is impractical to auger deep vertical holes
Easy connection to conductors using the pigtail (Up or Down orientation)
4) The Chemical Ground Electrode system is ideal for locations of high soil resistivity.

3. Product Type

Product Model Specification Tail Wire (mm2*L) Material Type PH
KF-CGRVD501500 Φ50*1500mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRVD502000 Φ50*2000mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRVD503000 Φ50*3000mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRVD521500 Φ52*1500mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRVD522000 Φ52*2000mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRVD523000 Φ52*1300mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRVD541500 Φ54*1500mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRVD542000 Φ54*2000mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRVD543000 Φ54*3000mm 70mm2*1000 Copper Pipe I type 7+5%
KF-CGRHL543000 Φ50*3000mm 70mm2*1000 Copper Pipe L type 7+5%
KF-CGRHL543000 Φ52*3000mm 70mm2*1000 Copper Pipe L type 7+5%
KF-CGRHL543000 Φ54*3000mm 70mm2*1000 Copper Pipe L type 7+5%



Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list



Electrolysis Chemical Grounding Rod, "I "type Copper Chemical Earth Rod 52*1500mm, with UL list
