Earth Rod Coupler, Ground Rod Fitting, Copper material, long service life
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | Connect Ground Rod | Material: | Metal, Brass |
|---|---|---|---|
| Standard Or Nonstandard: | Standard | Service Life: | More Than 50 Years |
Earth Rod Accessories: couple, driving head, drilling head.

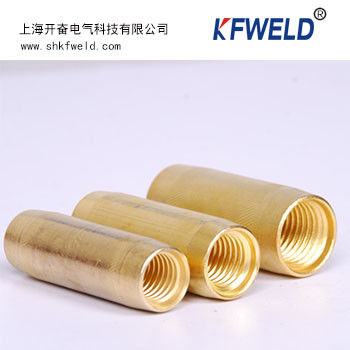

1. Ground rod couplings: the coupling is made of brass, counter bored to enclose fully the threads on the rods. The design is ensure that when assembled, there will be direct rod to rod contact when the rod driving force.
2.Ground rod driving heads: this accessory will be of high strength steel, threaded to fit the ground rod couplings, the design is ensure that there is direct driving head to rod contact when the rod driving force is applied and the driving head is suitable for reuse.
3. The bottom end is connected with special drilling head (connecting bolt) for rooting ground rod.
| Materials | Brass or Alloy copper |
| Function | Connecting ground rod |
| Advantage | Strong corrosion resistance, Good conductivity, and 50 years use life. |
| Operating | Very simple and convenient |
Product Specification:
| Model No. | Inner Diameter(mm) | Earth Rod Diameter(mm)(Thread Size) |
| KFWELD-12 | 12.7mm | 12.7mm(thread 1/2”) |
| KFWELD-58 | 14.2mm | 14.2mm(thread 5/8”) |
| KFWELD-142 | 14.2mm | 14.2mm(thread M16) |
| KFWELD-16 | 16mm | 16mm(thread M18) |
| KFWELD-34 | 17.2mm | 17.2mm(thread 3/4”) |
| KFWELD-18 | 18mm | 18mm(thread M20) |
| KFWELD-20 | 20mm | 20mm(thread M22) |
| KFWELD-25 | 25mm | 25mm(thread M27) |
