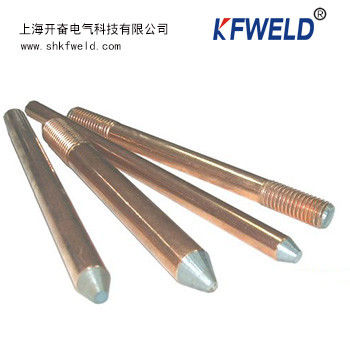

Copper Clad Steel Earth Rod, diameter 14.2mm, 5/8", length 2500mm

I'm Online Chat Now

Copper Clad Steel Earth Rod, diameter 14.2mm, 5/8", length 2500mm

China Copper Clad Steel Earth Rod, diameter 14.2mm, 5/8", length 2500mm supplier
Copper Clad Steel Earth Rod, diameter 14.2mm, 5/8", length 2500mm supplier Copper Clad Steel Earth Rod, diameter 14.2mm, 5/8", length 2500mm supplier Copper Clad Steel Earth Rod, diameter 14.2mm, 5/8", length 2500mm supplier Copper Clad Steel Earth Rod, diameter 14.2mm, 5/8", length 2500mm supplier

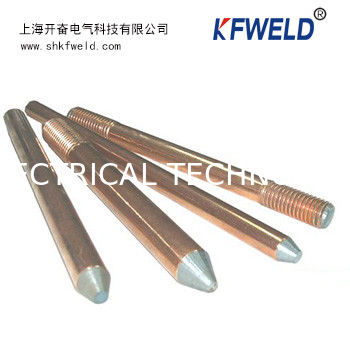

Large Image :  Copper Clad Steel Earth Rod, diameter 14.2mm, 5/8", length 2500mm

Product Details:

Place of Origin: China
Brand Name: KFWELD
Certification: CE, UL, SGS, ISO9001
Model Number: KF-TBGB1422500

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: USD
Packaging Details: Nylon strip, Weave strip, Iron pallet or wooden case, 3 tons/pallets
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000000 pcs/month
Detailed Product Description
Material: Electrolytic Copper And Low Carbon Steel Diameter: 14.2mm-25.0mm
Copper Thickness: >0.254mm Strength: >=600N/mm2
Packaging: Nylon Strip, Weave Strip, Iron Pallet Or Wooden Case, 3 Tons/pallets

Product Features:

1. Copper coated and steel rod achieve the type of molecular combination, grounding rod deep in the earth, not bend and break.
2. The copper coated uniform, high purity copper, strength steel core.
3. Strong corrosion resistance, non-tout line, non-warping, non-cracking.
4. Perfect conductive performance, stability electrical performance.

Data Parameters:

1. Copper coated thickness more than 0.25mm.
2. Tensile strength more than 600N/mm2.
3. Flatness error less than 1mm/m.
4. Copper layer plasticity: Ground rod(wire) bent 30 degree, no cracks inside and outside edge knuckle phenomenon.
5. Copper layer combined degree: the adhesion test,except the tiger clamp jaws bite outer copper layer sar epee led off, and the remaining parts of the copper-steel good combination, not appear peeling, connect the required length of grounding rods, can be 30 meters deep underground, and not subject to any increase soil resistivity and ground resistance climatic condition(frost and drought) effects.

Type of Products:

1.Ground rod can be made double heads thread, thread can be packed by plastic sheath.

2. One end is pointed and the other end is threaded for extend.

3. One end is pointed and the other end is un-threaded.



Product Model Diameter(mm) Length(mm) Weight(kg) Package
KF-TBGB1421200 14.2mm(5/8") 1200(4'') 1.50kgs



10 /bundle

KF-TBGB1421500 14.2mm(5/8") 1500(5'') 1.88kgs
KF-TBGB1422400 14.2mm(5/8") 2400mm(8'') 3.00kgs
KF-TBGB1422500 14.2mm(5/8") 2500 3.13kgs
KF-TBGB1423000 14.2mm(5/8") 3000mm(10'') 3.75kgs
KF-TBGB161200 16mm 1500mm 2.38kgs
KF-TBGB162500 16mm 2500mm 3.96kgs 5/bundle
KF-TBGB1721500 17.2mm(3/4") 1500(5'') 2.75kgs 10/bundle
KF-TBGB1722400 17.2mm(3/4") 2400mm(8'') 4.39kgs 5/bundle
KF-TBGB1722500 17.2mm(3/4") 2500mm 4.58kgs
KF-TBGB1723000 17.2mm(3/4") 3000mm(10'') 5.49kgs
KF-TBGB201500 20mm 1500mm 3.70kgs 10/bundle
KF-TBGB202500 20mm 2500mm 6.18kgs 5/bundle
KF-TBGB203000 20mm 3000mm 7.41kgs
KF-TBGB251500 25mm 1500mm 5.78kgs
KF-TBGB252500 25mm 2500mm 9.63kgs

20100831140212820.jpg20100831141019641.jpg17.jpg 18.jpg



Packaging & Shipping

Packaging Detail: 10pcs/bundle, Nylon strip, Weave strip, Iron pallet or wooden case. 3 tons per pallets, 20 tones per container.

Delivery time: 7 days/container.

Shipping: Delivery by sea.

.jpg



Our Services

Our KFWELD series of product already widely used in large scaled key national construction project, petrochemical field, electric power field, military field, railway field, nuclear power field, telecommunications field, and other industries. Our products make these filed into maintenance-free condition, easy transportation construction, reduce installation cost greatly, now our products not only cover through China market, but also accepted by the worldwide market.






Certifications

Certification: UL 467, ISO9001, CE, SGS

.jpg

Company Information

Shanghai KFWELD Electrical Technology Co., LTD is a high-tech enterprises, specialized in Grounding Lightning Protection, and Exothermic Welding Product. At present we have professional who deal with exothermic welding, grounding lightning protection field for many years.

We mainly focus on the research and development in grounding lightning protection, exothermic welding, sales and technology services,meanwhile, supply professional technology support and for all kinds of engineering construction.


How to Place Order

How about the order process?

1. Customers send inquiry to us, our sales will make professional quotation.
2. Confirm the price, quantity, shipping cost, delivery time, payment term etc.
3. Confirm the above, our sales make proforma invoice.
4. Customers make payment and send bank slip to us, we prepare order.
5. Payment arrive in our account, we will arrange delivery immediately.
6. After delivery, we will send tracking or B/L to customers. our service team will follow order tracking until customers receive.
7. Order can be say “finish” when you receive the goods and satisfy with them .
10. Feedback to our about Quality , Service, Market Feedback & Suggestion, then we can do better!
