SC 2 Holes Tinned Copper Cable Lug, Cable Terminal, high quality, best price on sales
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Copper Or Tinned Copper | Type: | SC Two Hole |
|---|---|---|---|
| Size: | 1.5-1000mm2 Electrical Cable |

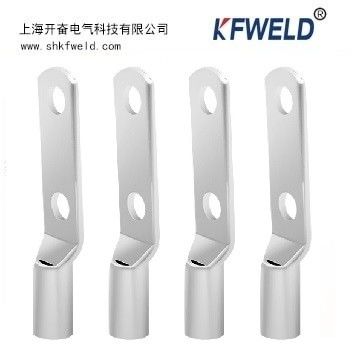

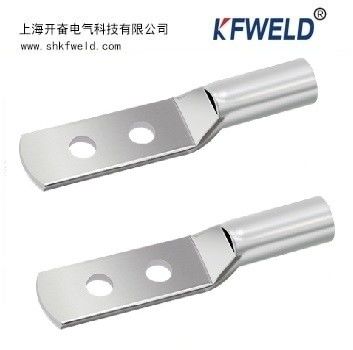

SC double-hole tinned copper cable lug is stamped with high-quality copper plate, and its application fields are wide, such as transformers, voltage regulators, various generators, and communication cables.
Function: connection, reduction of loss, full contact of current carrying capacity, easy replacement, and small voltage loss.
Remarks: If you need other styles and sizes, please provide drawings or samples to support custom-made.
| Model | Cable Size (mm2) | Dimension(mm) | ||||||
| Φ | D | d | L | L1 | L2 | T | ||
| KF-SC2-6 | 6 | 4.0 | 6.0 | 4.3 | 75 | 35 | 17 | 1.7 |
| KF-SC2-10 | 10 | 6.0 | 7.5 | 5.5 | 80 | 40 | 19 | 2.0 |
| KF-SC2-16 | 16 | 6.0 | 8.0 | 6.0 | 100 | 45 | 25 | 2.0 |
| KF-SC2-25 | 25 | 8.0 | 9.5 | 7.0 | 100 | 45 | 25 | 2.5 |
| KF-SC2-35 | 35 | 10.0 | 11.0 | 8.5 | 105 | 45 | 30 | 2.5 |
| KF-SC2-50 | 50 | 12.0 | 13.0 | 10.2 | 110 | 45 | 35 | 2.8 |
| KF-SC2-70 | 70 | 12.0 | 15.0 | 12.0 | 120 | 45 | 35 | 3.0 |
| KF-SC2-95 | 95 | 12.0 | 17.0 | 14.0 | 130 | 45 | 40 | 3.0 |
| KF-SC2-120 | 120 | 12.0 | 19.5 | 16.0 | 135 | 45 | 42 | 3.5 |
| KF-SC2-150 | 150 | 12.0 | 21.0 | 17.2 | 135 | 45 | 45 | 3.8 |
| KF-SC2-185 | 185 | 12.0 | 22.0 | 18.2 | 150 | 45 | 50 | 3.8 |
| KF-SC2-240 | 240 | 12.0 | 26.0 | 22.0 | 150 | 45 | 50 | 4.0 |
| KF-SC2-300 | 300 | 12.0 | 30.5 | 25.0 | 165 | 45 | 60 | 5.5 |
| KF-SC2-400 | 400 | 12.0 | 35.5 | 30.0 | 180 | 45 | 60 | 5.5 |
| KF-SC2-500 | 500 | 12.0 | 38.0 | 31.0 | 180 | 45 | 65 | 7.0 |
| KF-SC2-630 | 600 | 12.0 | 44.0 | 36.0 | 200 | 45 | 70 | 8.0 |
