GL type Cable lug Aluminum Connecting Pipe Aluminum Connecting Terminal
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Aluminum | Type: | GL Pipe |
|---|---|---|---|
| Function: | Fixing And Connection For Cables | Character: | Igh Conductivity;Strong Anti Corrosion; Cost-effective |
| Service Life: | More Than 50 Years |

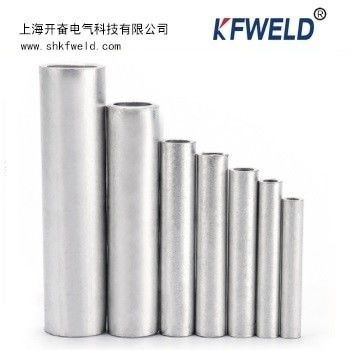

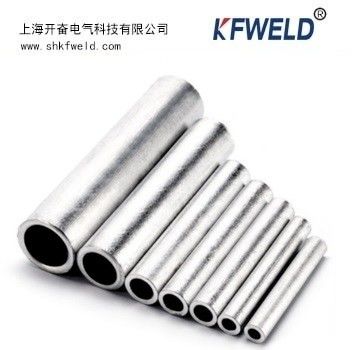

GL Aluminum Connect Ferrule Tube is suitable for the connection between various round and semi-circular fan-shaped wires and power cables in power distribution devices.
Material: Aluminum.
Features: anti-corrosion, long stress, good electrical conductivity and safety.
| Model | Cable Size (mm2) | Dimension (mm) | ||
| d | D | L | ||
| KF-GL-10 | 10 | 5 | 8 | 50 |
| KF-GL-16 | 16 | 6 | 9 | 56 |
| KF-GL-25 | 25 | 7 | 10 | 60 |
| KF-GL-35 | 35 | 8.5 | 12 | 64 |
| KF-GL-50 | 50 | 10 | 14 | 72 |
| KF-GL-70 | 70 | 12 | 16 | 78 |
| KF-GL-95 | 95 | 13 | 18 | 85 |
| KF-GL-120 | 120 | 15 | 20 | 90 |
| KF-GL-150 | 150 | 16 | 22 | 94 |
| KF-GL-185 | 185 | 18 | 25 | 100 |
| KF-GL-240 | 240 | 20 | 27 | 110 |
| KF-GL-300 | 300 | 24 | 31 | 120 |
| KF-GL-400 | 400 | 26 | 34 | 135 |
| KF-GL-500 | 500 | 30 | 38 | 150 |
| KF-GL-630 | 630 | 35 | 45 | 170 |
