DTL-2 Bimetallic Copper Aluminum Cable Lug, aluminium copper tubular terminals bimetallic cable lug for wire connection
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | T2 Copper And L3 Aluminum | Type: | DTL-2 |
|---|---|---|---|
| Function: | Fixing And Connection For Cables | Character: | Igh Conductivity;Strong Anti Corrosion; Cost-effective |
| Service Life: | More Than 50 Years |

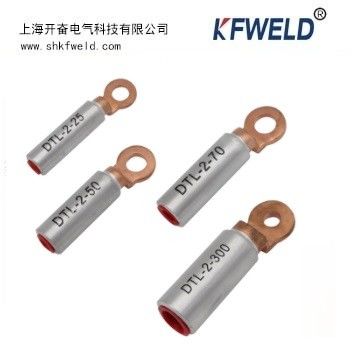

DTL-2 round head copper aluminum cable lug, suitable for aluminum alloy cable, aluminum cable, circuit breaker switch, etc. European standard export type copper and aluminum cable lug, made by T2 copper and L3 aluminum. The product is manufactured by friction welding process, with high weld strength, good electrical performance, anti-electrochemical corrosion, continuous length, etc.

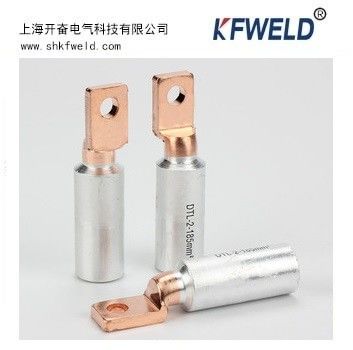

Remark: Support customized DTL-2 square head copper aluminum cable lug.
| Model | Cable Size (mm2) | Dimensions (mm) | ||||||||
| A | B | L1 | L | D | d | G | T | W | ||
| KF-DTL-2-16 | 16 | 16 | 6.5 | 40 | 80 | 20 | 11 | 11.8 | 4 | 20 |
| KF-DTL-2-25 | 25 | 16 | 7.5 | 40 | 80 | 20 | 11 | 11.8 | 4 | 20 |
| KF-DTL-2-35 | 35 | 16 | 8.5 | 40 | 80 | 20 | 11 | 11.8 | 4 | 20 |
| KF-DTL-2-50 | 50 | 20 | 10 | 43 | 90 | 25 | 12.8 | 15 | 5 | 25 |
| KF-DTL-2-70 | 70 | 20 | 11.5 | 43 | 90 | 25 | 12.8 | 15 | 5 | 25 |
| KF-DTL-2-95 | 95 | 20 | 13.5 | 43 | 90 | 25 | 12.8 | 15 | 5 | 25 |
| KF-DTL-2-120 | 120 | 25 | 15 | 58 | 112 | 30 | 12.8 | 18.8 | 6 | 30 |
| KF-DTL-2-150 | 150 | 25 | 16.5 | 58 | 112 | 30 | 12.8 | 18.8 | 6.5 | 30 |
| KF-DTL-2-185 | 185 | 32 | 18.5 | 60 | 122 | 35 | 12.8 | 23.8 | 7 | 35 |
| KF-DTL-2-240 | 240 | 32 | 21 | 60 | 122 | 35 | 12.8 | 23.8 | 7 | 35 |
| KF-DTL-2-300 | 300 | 34 | 23.5 | 65 | 125 | 35 | 12.8 | 23.8 | 7 | 35 |
| KF-DTL-2-400 | 400 | 40 | 26 | 90 | 160 | 36 | 17 | 27 | 7 | 40 |
| KF-DTL-2-500 | 500 | 40 | 29.5 | 90 | 160 | 36 | 17 | 27 | 7 | 40 |
