|Usage:||Earth Resistance Reduction||Shape:||Powder|

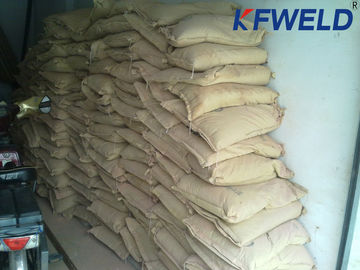

|Package:||25kgs/bag||Application:||Earth Resistance Reduction|
|Type:||Natural||Material:||Expandable/Dilatable Graphite Powder|

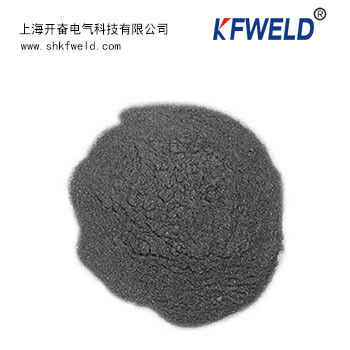

Grounding Enhancement Material,
efficient bentonite resistance redecing compounds
1. As it has low resistivity, high water absorption and water holding performance,Earthing Compound(Ground Enhancing Material,earth improving powder) is good and stable in resistance reduction.
2. As it is good in corrosion resistance and stability, so it can be working effectively for a long time.
3. As it is good in impact and uniform pressure, it will not only reduce the working frequency grounding resistance, it also reduce the impact grounding resistance.
4. It not only works well in small and medium size grounding network, it also can work well in large grounding network. It can function as reducing resistance, but also it can be good in corrosion resistance and uniform pressure.
5. High efficient bentone resistance reduction agent is verified as no pollution in the process of reducing resistance and no harm to human body after checked strictly by environmental department for manufacturing process, operations, sample and applications.
6. After agent is applied around the grounding units, it is equal to increase the effective cross section of grounding units for resistance reduction, so it functions well in the aspect of pressure reduction and reduce the step voltage and contact voltage from equipment.
Vertical grounding installation: excavation having a diameter of 100 -200mm deep (well) hole depth should be longer than the ground extremely 50-100mm. A small amount of reducing agent poured into the hole, then put the ground electrode (try to make it stand hole center), then continue Zuji poured until it covers the ground electrode, and then backfill fine soil.
1, grounding installation: 0.65 meters deep excavation of a trapezoidal ditch, ditch width of about 0.1 to 0.3 meters, slightly longer than the grounding. Zuji laying in the ditch first part, and then the ground electrode placed to continue laying Zuji, until it covers the ground electrode, and then backfill fine soil.
2, the proportion of feed and water is 1: 0.8, stir, conditional, can be borrowed mixer for 10 minutes.
3, should be fully covered Zuji grounding, it is very important.
4, after the basic solidification resist surface, the first layer of fine soil backfill, backfill backfill should Mizobe to center, then can backfill the original soil, and compaction.
Amount of use:
|Amount of Use(kg)||12||25||38||50||62||75|
|Amount of Use(kg)||6||12||18||25||31||38|
Our KFWELD series of product already widely used in large scaled key national construction project, petrochemical field, electric power field, military field, railway field, nuclear power field, telecommunications field, and other industries. Our products make these filed into maintenance-free condition, easy transportation construction, reduce installation cost greatly, now our products not only cover through China market, but also accepted by the worldwide market.
