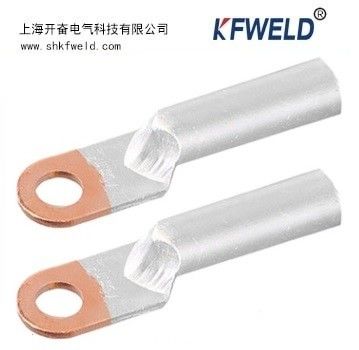

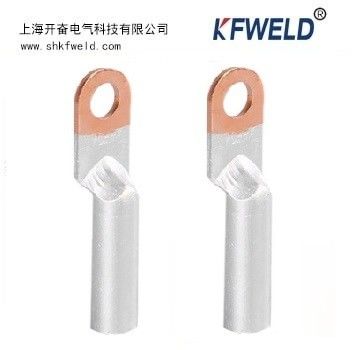

DTL Bimetallic Copper Aluminum Cable Lug, DTL aluminium copper tubular terminals bimetallic cable lug
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | T2 Copper And L3 Aluminum | Type: | DTL |
|---|---|---|---|
| Function: | Fixing And Connection For Cables | Character: | Igh Conductivity;Strong Anti Corrosion; Cost-effective |
| Service Life: | More Than 50 Years |
DTL Bimetallic copper-aluminum terminals lug, suitable for the transitional connection of various round and semicircular fan-shaped aluminum wires in the switch device, the power cable and the copper terminal of the electrical equipment, and the aluminum core cable of the distribution device and the copper terminal of the electrical equipment.
The material is T2 copper and L3 aluminum, and the product is purchased by friction welding process. It has the characteristics of high weld strength, good electrical performance, resistance to electrochemical corrosion, and long replacement.
| Model | Cable Size (mm2) | Dimensions (mm) | |||||
| Φ | D | d | L | W | T | ||
| KF-DTL-10 | 10 | 8.5 | 10 | 5 | 67 | 16 | 2.7 |
| KF-DTL-16 | 16 | 8.5 | 10 | 5.5 | 67 | 16 | 3.0 |
| KF-DTL-25 | 25 | 8.5 | 12 | 7.0 | 70 | 18 | 3.5 |
| KF-DTL-35 | 35 | 10.5 | 14 | 8.5 | 79 | 20 | 3.5 |
| KF-DTL-50 | 50 | 10.5 | 16 | 9.5 | 90 | 23 | 4.0 |
| KF-DTL-70 | 70 | 12.5 | 18 | 12 | 102 | 26 | 4.5 |
| KF-DTL-95 | 95 | 12.5 | 21 | 13 | 112 | 28 | 5.0 |
| KF-DTL-120 | 120 | 14.5 | 23 | 15 | 120 | 30 | 5.5 |
| KF-DTL-150 | 150 | 14.5 | 25 | 16 | 126 | 34 | 6.0 |
| KF-DTL-185 | 185 | 16.5 | 27 | 18 | 133 | 37 | 6.5 |
| KF-DTL-240 | 240 | 16.5 | 30 | 20 | 140 | 40 | 7.5 |
| KF-DTL-300 | 300 | 21 | 34 | 23 | 165 | 45 | 8.5 |
| KF-DTL-400 | 400 | 21 | 38 | 26 | 170 | 52 | 9.5 |
| KF-DTL-500 | 500 | 21 | 42 | 29 | 190 | 60 | 10 |
| KF-DTL-630 | 630 | 54 | 34 | 225 | 78 | 10.5 | |
| KF-DTL-800 | 800 | 60 | 38 | 270 | 100 | 11 | |
