Copper Busbar for Lightning Protection, copper busbar, electric busbar system

I'm Online Chat Now

Copper Busbar for Lightning Protection, copper busbar, electric busbar system

China Copper Busbar for Lightning Protection,  copper busbar, electric busbar system supplier
Copper Busbar for Lightning Protection,  copper busbar, electric busbar system supplier Copper Busbar for Lightning Protection,  copper busbar, electric busbar system supplier Copper Busbar for Lightning Protection,  copper busbar, electric busbar system supplier Copper Busbar for Lightning Protection,  copper busbar, electric busbar system supplier

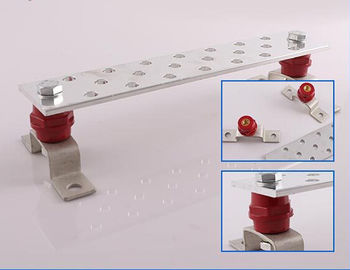

Large Image :  Copper Busbar for Lightning Protection, copper busbar, electric busbar system

Product Details:

Place of Origin: China
Brand Name: KFWELD
Certification: CE, SGS, ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD
Packaging Details: Carton
Delivery Time: 3 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100000 per month
Detailed Product Description
Material: 99.99% Copper Function: Multi-wire Connection Provides A Centralized Location
Service Life: More Than 50 Years Surface Treatment: Zinc, Tin, Chrome Plated As Customized

Product Instruction:

Ground Copper busbar use pure copper as the main material for multi-wire connection provides a centralized location. It can be installed in the tower, indoor and outdoor base stations, and any other requirements for grounding place. It is strictly in accordance with the relevant IEC standard production of products for all types of terminal lugs, after surface treatment, good conductivity, no contact surface oxidation, to ensure a reliable electrical conductivity. The product is reasonable overall design, using standard insulators supporting and equipped with steel support, and finally fix in the desired position with expansion screws.



Product Parameters:

1.Material: 99.99% copper.

2.Function: Multi-wire connection provides a centralized location.

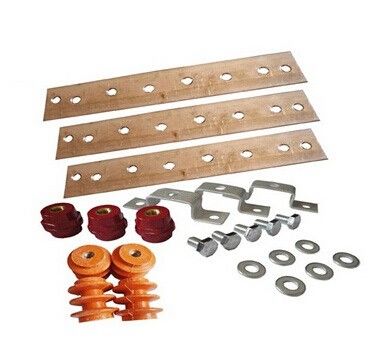

3.One set ground copper busbar system including:

1 pcs copper bushar, 2 pcs insulator, 4 pcs fix bolt(stainless steel or brass), 2 pcs support(stainless steel), connection bolt quantity to be demand(stainless steel or brass).

4.Advantage: Strong corrosion resistance, Good conductivity, and 50 years use life.



Remark: Copper busbar surface can Tin-plated as requested, small resistance and good electrical conductivity. Processing using punch punching (or drilling), making holes accurate, consistent pore size. Insulators using polyester resin raw materials, good insulation, high strength steel support after molding, surface plating purification, corrosion resistant.



Product Specification:

Product Model Copper busbar Size Remark
KF-GCB404 40mm*4mm*L copper busbar size,hole size and quantity, can be customized
KF-GCB505 50mm*5mm*L
KF-GCB506 50mm*6mm*L
KF-GCB806 80mm*6mm*L
KF-GCB8010 80mm*10mm*L
KF-GCB10005 100mm*5mm*L
KG-GCB10010 100mm810mm*L

Copper Busbar for Lightning Protection,  copper busbar, electric busbar system





Product Application:

The product can be widely used in the communications industry, power systems, building systems, military installations, railway systems, broadcasting systems and other equipment industries, the AC and DC work, safely protected, especially suitable for harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.

Copper Busbar for Lightning Protection,  copper busbar, electric busbar system

How about the order process?

1. Customers send inquiry to us, our sales will make professional quotation.
2. Confirm the price, quantity, shipping cost, delivery time, payment term etc.
3. Confirm the above, our sales make proforma invoice.
4. Customers make payment and send bank slip to us, we prepare order.
5. Payment arrive in our account, we will arrange delivery immediately.
6. After delivery, we will send tracking or B/L to customers. our service team will follow order tracking until customers receive.
7. Order can be say "finish"when you receive the goods and satisfy with them .
10. Feedback to our about Quality , Service, Market Feedback & Suggestion, then we can do better!
