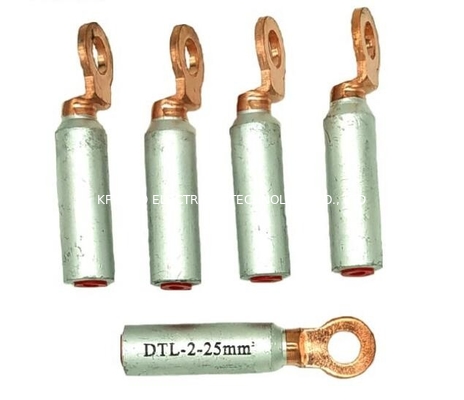

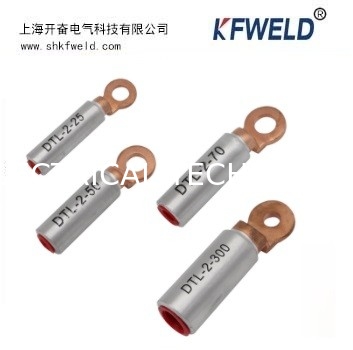

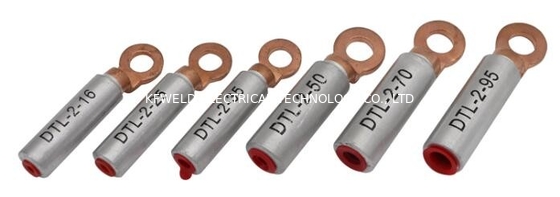

DTL-2 Bimetallic Copper Aluminum Cable Lug
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
DTL-2 round head copper aluminum cable lug, suitable for aluminum alloy cable, aluminum cable, circuit breaker switch, etc. European standard export type copper and aluminum cable lug, made by T2 copper and L3 aluminum. The product is manufactured by friction welding process, with high weld strength, good electrical performance, anti-electrochemical corrosion, continuous length, etc.
| Model | Cable Size (mm2) | Dimensions (mm) | ||||||||
| A | B | L1 | L | D | d | G | T | W | ||
| KF-DTL-2-16 | 16 | 16 | 6.5 | 40 | 80 | 20 | 11 | 11.8 | 4 | 20 |
| KF-DTL-2-25 | 25 | 16 | 7.5 | 40 | 80 | 20 | 11 | 11.8 | 4 | 20 |
| KF-DTL-2-35 | 35 | 16 | 8.5 | 40 | 80 | 20 | 11 | 11.8 | 4 | 20 |
| KF-DTL-2-50 | 50 | 20 | 10 | 43 | 90 | 25 | 12.8 | 15 | 5 | 25 |
| KF-DTL-2-70 | 70 | 20 | 11.5 | 43 | 90 | 25 | 12.8 | 15 | 5 | 25 |
| KF-DTL-2-95 | 95 | 20 | 13.5 | 43 | 90 | 25 | 12.8 | 15 | 5 | 25 |
| KF-DTL-2-120 | 120 | 25 | 15 | 58 | 112 | 30 | 12.8 | 18.8 | 6 | 30 |
| KF-DTL-2-150 | 150 | 25 | 16.5 | 58 | 112 | 30 | 12.8 | 18.8 | 6.5 | 30 |
| KF-DTL-2-185 | 185 | 32 | 18.5 | 60 | 122 | 35 | 12.8 | 23.8 | 7 | 35 |
| KF-DTL-2-240 | 240 | 32 | 21 | 60 | 122 | 35 | 12.8 | 23.8 | 7 | 35 |
| KF-DTL-2-300 | 300 | 34 | 23.5 | 65 | 125 | 35 | 12.8 | 23.8 | 7 | 35 |
| KF-DTL-2-400 | 400 | 40 | 26 | 90 | 160 | 36 | 17 | 27 | 7 | 40 |
| KF-DTL-2-500 | 500 | 40 | 29.5 | 90 | 160 | 36 | 17 | 27 | 7 | 40 |
