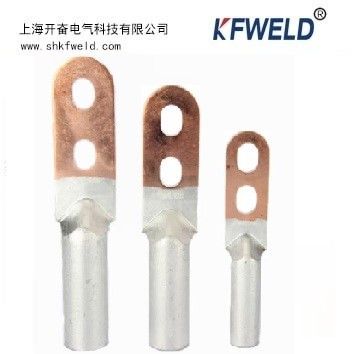

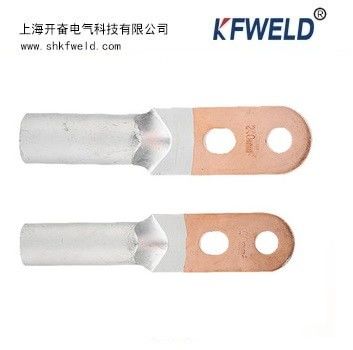

DTL 2 holes Bimetallic Copper Aluminum Cable Lug, DTL aluminium copper tubular terminals bimetallic cable lug
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | T2 Copper And L3 Aluminum | Type: | DTL 2 Holes |
|---|---|---|---|
| Function: | Fixing And Connection For Cables | Character: | Igh Conductivity;Strong Anti Corrosion; Cost-effective |
| Service Life: | More Than 50 Years |
DTL2 double-hole bimetallic copper-aluminum terminal lug, made of T2 copper, resistant to oxidation and corrosion. Support customized.
Standard type specification:
| Model | Cable Size (mm2) | Dimension (mm) | ||||||||
| Φ | D | d | L | L1 | L2 | L3 | W | T | ||
| KF-DTL2-16 | 16 | 8.5 | 10 | 5.5 | 90 | 32 | 44 | 20 | 18 | 3.0 |
| KF-DTL2-25 | 25 | 8.5 | 11 | 7.0 | 93 | 38 | 45 | 20 | 18 | 3.2 |
| KF-DTL2-35 | 35 | 10.5 | 12 | 8.5 | 104 | 42 | 48 | 20 | 20 | 3.6 |
| KF-DTL2-50 | 50 | 10.5 | 14 | 9.5 | 112 | 46 | 50 | 20 | 23 | 4.0 |
| KF-DTL2-70 | 70 | 12.5 | 16 | 12 | 125 | 47 | 59 | 25 | 26 | 4.5 |
| KF-DTL2-95 | 95 | 12.5 | 18 | 13 | 136 | 53 | 60 | 25 | 28 | 4.8 |
| KF-DTL2-120 | 120 | 14.5 | 20 | 15 | 145 | 55 | 69 | 30 | 30 | 5.5 |
| KF-DTL2-150 | 150 | 14.5 | 22 | 16 | 150 | 55 | 70 | 30 | 34 | 6.0 |
| KF-DTL2-185 | 185 | 14.5 | 24 | 18 | 162 | 62 | 76 | 35 | 37 | 6.5 |
| KF-DTL2-240 | 240 | 16.5 | 27 | 20 | 170 | 65 | 78 | 35 | 40 | 7.0 |
| KF-DTL2-300 | 300 | 18 | 30 | 23 | 190 | 72 | 87 | 40 | 45 | 8.5 |
| KF-DTL2-400 | 400 | 21 | 34 | 26 | 195 | 75 | 87 | 40 | 50 | 8.5 |
| KF-DTL2-500 | 500 | 21 | 38 | 29 | 225 | 80 | 110 | 45 | 60 | 9.5 |
